Product Description:

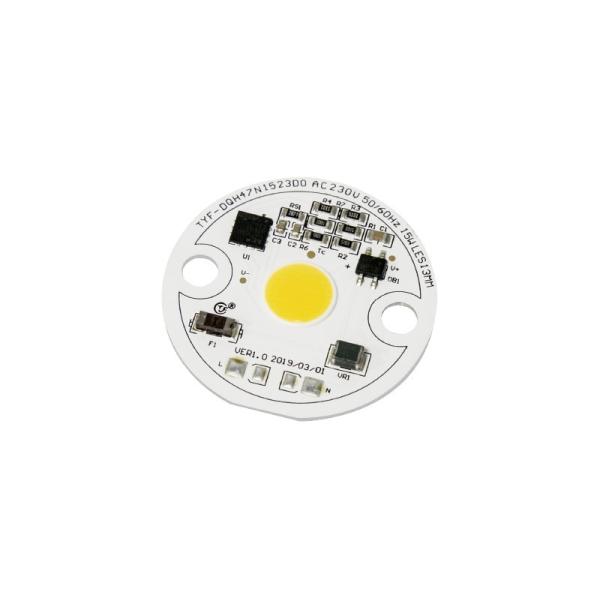

The Dimmable LED Module is a cutting-edge lighting solution designed to provide high-quality illumination in a compact and energy-efficient package. With a size of φ47*φ1.0, this AC LED Module is perfect for a wide range of applications where space is limited but performance is crucial.
Equipped with a Power Factor Correction (PFC) rating of 0.95, these AC120/230V LED Modules ensure optimal energy utilization and reduced power wastage, resulting in cost savings and environmental benefits. The high PFC value also indicates the efficiency of the module in converting electricity into light, making it an excellent choice for eco-conscious consumers.
Featuring a Color Rendering Index (CRI) of Ra80/90, this AC LED Module delivers vibrant and true-to-life colors, enhancing the visual appeal of any space. Whether used in residential, commercial, or industrial settings, the superior color quality of the module ensures that objects appear natural and accurately represented under its illumination.
Designed to operate at an Input Voltage of AC 120/230V, these LED modules are compatible with standard electrical systems, making them easy to integrate into existing lighting setups without the need for additional transformers or converters. The wide input voltage range also ensures flexibility in installation, allowing users to deploy the modules in various locations with different power specifications.
In addition, the Dimmable LED Module comes with Surge protection, with a surge rating of L-N=1KV. This feature safeguards the module and connected devices from power surges and voltage spikes, ensuring reliable performance and longevity. By mitigating the risks associated with electrical disturbances, the surge protection enhances the durability and stability of the AC LED Module, providing peace of mind to users.
Features:
- Can be directly connected to AC voltage without a driver
- Modules with integrated components.
- Economic module solution.
- High efficiency, high power factor, low harmonic distortion.
- High color rendering index (≥ 80)
- High luminous efficiency 110 LM/W@Ra80
- Three year warranty
Technical Parameters:
| CCT |
2700/3000/4000/5000/6500 |
| CRI |
Ra80/90 |
| Certifications |
CE, RoHS, LM80, IECEN62471 |
| Surge |
L-N=1KV |
| PFC |
0.95 |
| Luminous Efficacy |
100lm/w@Ra90 |
| Dimming |
TRIAC |
| Input Voltage |
AC 120/230V |
| Size |
φ47*φ1.0 |
| Power |
10-15W |
Applications:
One of the key attributes of the TYF DQH47N AC LED Module is its dimmable feature, making it perfect for environments where adjustable lighting levels are required. Whether it's in residential settings, commercial spaces, or hospitality venues, this dimmable LED module offers flexibility and control over the lighting atmosphere.
Thanks to its DOB LED technology, the TYF DQH47N AC LED Module provides efficient and reliable performance, ensuring long-term sustainability and energy savings. The module's power range of 10-15W makes it suitable for different lighting applications, from accent lighting to general illumination.
Manufactured in China, the TYF DQH47N AC LED Module meets high-quality standards and has obtained certifications such as CE, RoHS, LM80, IEC, EN62471, and ERP. These certifications guarantee the product's safety, efficiency, and compliance with international regulations.
With a surge protection of L-N=1KV, the TYF DQH47N AC LED Module offers enhanced durability and reliability, making it suitable for challenging environments where electrical surges may occur.
The supply ability of 200K-400Kpcs/M ensures that the TYF DQH47N AC LED Module can meet the demands of large-scale projects with a minimum order quantity of 200pcs. The delivery time of 20 workdays and payment terms of T/T provide convenience and efficiency in the procurement process.
For more information on pricing and packaging details, as well as specific product applications and scenarios, please contact the TYF sales team. Whether it's for residential, commercial, or industrial projects, the TYF DQH47N AC LED Module is a reliable and versatile lighting solution that delivers excellent performance and energy efficiency.
Customization:
If the product description parameters do not meet your needs, please contact sales personnel for customization.
